Did you ever wish you had better Diagrams?
Let’s recap what we did so far: in order to kickstart a documentation project, we’ve created a dual gradle / maven asciidoc build with included arc42 template in two languages and easy textual diagram drawing with planUML. That’s already quite a feature list!
But what if plantUML diagrams are not enough for your needs? What if you can’t rely on the auto-layout feature of plantUML?
One solution would be to just start up your favourite diagramming tool, draw your diagrams, export them and reference them from asciidoc. No problem. But what if you need to update one of the diagrams? Or you just worked the whole day on some diagrams and you don’t know anymore which ones to re-export?
Wouldn’t it be nice if your build just takes care of it?
It could just search for your diagrams files and export them.
That’s exactly what we will add today. Since there are two many diagramming tools on the market to include them all in one post, I will stick to Sparx Enterprise Architect. Enterprise Architect - or short jsut EA - is a powerful but yet affordable tool which can be easily scripted.
There are several options for scripting like internal scripts written in JavaScript, JScript and VBScript. These scripts have to be invoked manually from within the application. Another option is to use the automation interface and "remote control" the application from outside. This can be done in various languages (all which have access to the ActiveX COM interface). There is a java bridge included and VBS would be the native approach.
In the past I already played around with the included java interface and had the feeling that it is a little bit incomplete or buggy. That’s why I soon switched to VisualBasic as scripting for EA - this avoids an additional layer between me and the application.
Features
The script I want to include into our build will have several tasks:
-
find all EA repositories within the project
-
open the found repositories through EA
-
export all diagrams and save them with their given name as file name
-
as bonus, check all element notes and export those which start with {adoc: filename}
I’ve chose to use the given name of a diagram for the file name because I think it is easier to handle and speaks for itself. Drawback is that you have to make sure that the name is a valid file name and it is unique. Another aproach would be to use the quite cryptic object ID (GUID)
What’s up with the bonus tasks? Working with EA, I like to directly write my comments and descriptions in the note fields of the diagram elements. By prefixing them with {adoc: filename}, I can decide to export and easily include them into my documentation. This way, the written documentation for a diagram can be directly maintained within EA.
Code
The following is the VB-Script code which does all the hard work:
' based on the "Project Interface Example" which comes with EA
' http://stackoverflow.com/questions/1441479/automated-method-to-export-enterprise-architect-diagrams
Dim EAapp 'As EA.App
Dim Repository 'As EA.Repository
Dim FS 'As Scripting.FileSystemObject
Dim projectInterface 'As EA.Project
' Helper
' http://windowsitpro.com/windows/jsi-tip-10441-how-can-vbscript-create-multiple-folders-path-mkdir-command
Function MakeDir (strPath)
Dim strParentPath, objFSO
Set objFSO = CreateObject("Scripting.FileSystemObject")
On Error Resume Next
strParentPath = objFSO.GetParentFolderName(strPath)
If Not objFSO.FolderExists(strParentPath) Then MakeDir strParentPath
If Not objFSO.FolderExists(strPath) Then objFSO.CreateFolder strPath
On Error Goto 0
MakeDir = objFSO.FolderExists(strPath)
End Function
'
' Recursively saves all diagrams under the provided package and its children
'
Sub DumpDiagrams(thePackage,currentModel)
Set currentPackage = thePackage
Const ForAppending = 8
For Each currentElement In currentPackage.Elements
If (Left(currentElement.Notes, 6) = "{adoc:") Then
strFileName = Mid(currentElement.Notes,7,InStr(currentElement.Notes,"}")-7)
strNotes = Right(currentElement.Notes,Len(currentElement.Notes)-InStr(currentElement.Notes,"}"))
set objFSO = CreateObject("Scripting.FileSystemObject")
If (currentModel.Name="Model") Then
' When we work with the default model, we don't need a sub directory
path = "./src/docs/ea/asciidoc/"
Else
path = "./src/docs/ea/asciidoc/"¤tModel.Name&"/"
End If
MakeDir(path)
WScript.echo path&strFileName
set objFile = objFSO.OpenTextFile(path&strFileName&".ad",ForAppending, True)
objFile.WriteLine(vbCRLF&vbCRLF&"."¤tElement.Name&vbCRLF&strNotes)
objFile.Close
End If
Next
' Iterate through all diagrams in the current package
For Each currentDiagram In currentPackage.Diagrams
' Open the diagram
Repository.OpenDiagram(currentDiagram.DiagramID)
' Save and close the diagram
If (currentModel.Name="Model") Then
' When we work with the default model, we don't need a sub directory
path = "/src/docs/ea/images/"
Else
path = "/src/docs/ea/images/" & currentModel.Name & "/"
End If
filename = path & currentDiagram.Name & ".png"
MakeDir("." & path)
projectInterface.SaveDiagramImageToFile(fso.GetAbsolutePathName(".")&filename)
WScript.echo " extracted image to ." & filename
Repository.CloseDiagram(currentDiagram.DiagramID)
Next
' Process child packages
Dim childPackage 'as EA.Package
For Each childPackage In currentPackage.Packages
call DumpDiagrams(childPackage, currentModel)
Next
End Sub
Function SearchEAProjects(path)
For Each folder In path.SubFolders
SearchEAProjects folder
Next
For Each file In path.Files
If fso.GetExtensionName (file.Path) = "eap" Then
WScript.echo "found "&file.path
OpenProject(file.Path)
End If
Next
End Function
Sub OpenProject(file)
' open Enterprise Architect
Set EAapp = CreateObject("EA.App")
WScript.echo "opening Enterprise Architect. This might take a moment..."
' load project
EAapp.Repository.OpenFile(file)
' make Enterprise Architect to not appear on screen
EAapp.Visible = False
' get repository object
Set Repository = EAapp.Repository
' Show the script output window
' Repository.EnsureOutputVisible("Script")
Set projectInterface = Repository.GetProjectInterface()
' Iterate through all model nodes
Dim currentModel 'As EA.Package
For Each currentModel In Repository.Models
' Iterate through all child packages and save out their diagrams
Dim childPackage 'As EA.Package
For Each childPackage In currentModel.Packages
call DumpDiagrams(childPackage,currentModel)
Next
Next
EAapp.Repository.CloseFile()
End Sub
set fso = CreateObject("Scripting.fileSystemObject")
WScript.echo "Image extractor"
WScript.echo "looking for .eap files in " & fso.GetAbsolutePathName(".") & "/src"
'Dim f As Scripting.Files
SearchEAProjects fso.GetFolder("./src")
WScript.echo "finished exporting images"add it to the Build
Gradle uses Groovy and Groovy is able to easily execute shell scripts. But the standard execution mechanism has some drawbacks (regarding getting the output/error messages from the shell script and also regarding parameters). So I wrote my own streaming execute code which I add through meta programming to the string class. The code which adds the method has also to be executed, so I wrote a special task for this:
task streamingExecute(
dependsOn: [],
description: 'extends the String class with a better .executeCmd'
) << {
//I need a streaming execute in order to export from EA
String.metaClass.executeCmd = {
//make sure that all paramters are interpreted through the cmd-shell
//TODO: make this also work with *nix
def p = "cmd /c ${delegate.value}".execute()
def result=[std:'',err:'']
def ready = false
Thread.start{
def reader = new BufferedReader(new InputStreamReader(p.in))
def line = ""
while ((line = reader.readLine()) != null) {
println ""+line
result.std+=line+"\n"
}
ready=true
reader.close()
}
p.waitForOrKill(30000)
def error = p.err.text
if (error.isEmpty()) {
return result
} else {
throw new RuntimeException("\n"+error)
}
}
}Windows? Linux?
This code fragment currently only works for Windows, but I guess if you use EA, you are not running Linux or MacOS, so I guess this will be fine. If you use Ea on Linux or MaxOS, please contact me - it would be great to make this work on Linux!
Now you might think, that if this only runs on Windows, I can’t use it on a build server. Take a closer look at the VBScript above. I’ve configured it in such a way that it exports everything to /src/docs/es and not to the /build folder. This is because I normally export the EA content on my dev machine and check in the results. This makes it even easier to get a diff of the work you’ve done in EA. The remaining build process can rely on the exported data and thus even runs on Linux.
final task
In order to use the streaming execute and run the VBScript, I just added another small task to the Gradle build file:
task exportEA(
dependsOn: [streamingExecute],
description: 'exports all diagrams and some texts from EA files'
) << {
new File('src/docs/ea/.').mkdirs()
//execute through cscript in order to make sure that we get WScript.echo right
"%SystemRoot%\\System32\\cscript.exe //nologo scripts/exportEAP.vbs".executeCmd()
//the VB Script is only capable of writing iso-8859-1-Files.
//we now have to convert them to UTF-8
new File('src/docs/ea/.').eachFileRecurse { file ->
if (file.isFile()) {
println "exported notes "+file.canonicalPath
file.write(file.getText('iso-8859-1'),'utf-8')
}
}
}So, to export all diagrams and notes from EA, you simply run gradle exportEA in the shell: (I’ve included a small sample EA file)
> gradle exportEA :streamingExecute :exportEA Image extractor looking for .eap files in .\docToolchain/src found .\src\docs\Models.eap opening Enterprise Architect. This might take a moment... extracted image to ./src/docs/images/ea/Use Cases.png finished exporting images exported notes .\src\docs\ea\UseCases.ad
BUILD SUCCESSFUL
Total time: 14.228 secs
Give it a Try…
So, if you want to test it, you can use the sample EA file included in the docToolchain project and add a small asciidoc file like the following:
image::ea/Use{sp}Cases.png[width=25%]
include::ea/UseCases.ad[]
Notice the in the filename? This is in asciidoc the workaround for spaces in a filename.

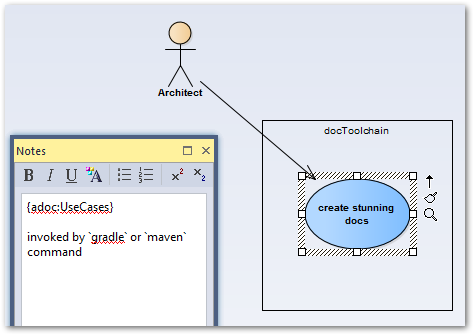

The EA sample diagram looks like this:

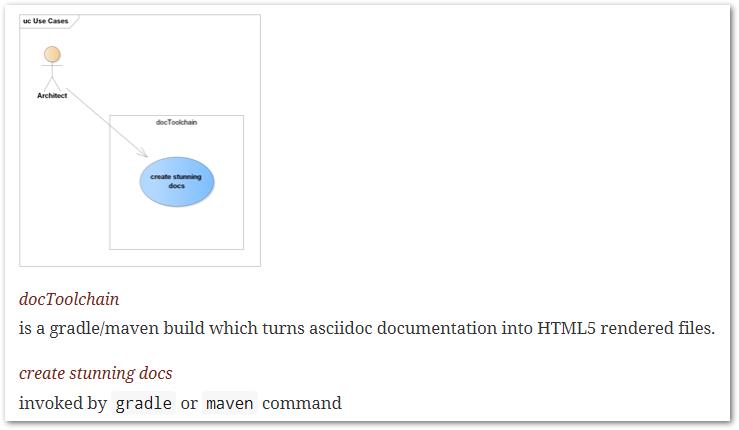

and our build turns renders it like this:
Conclusion
Today we extended our build with the feature to extract Diagrams and Notes from the Sparxsystems Enterprise Architect UML Modeller. This feature is quite helpful when you have to deal with Diagrams where plantUML is not enough but it does not replace plantUML. PlantUML is still quite useful when you need a simple diagram or a diagram - like a sequence diagram - where the auto-layout of plantUML is quite useful.
The updated docTool project can be found here: https://github.com/docToolchain/docToolchain
